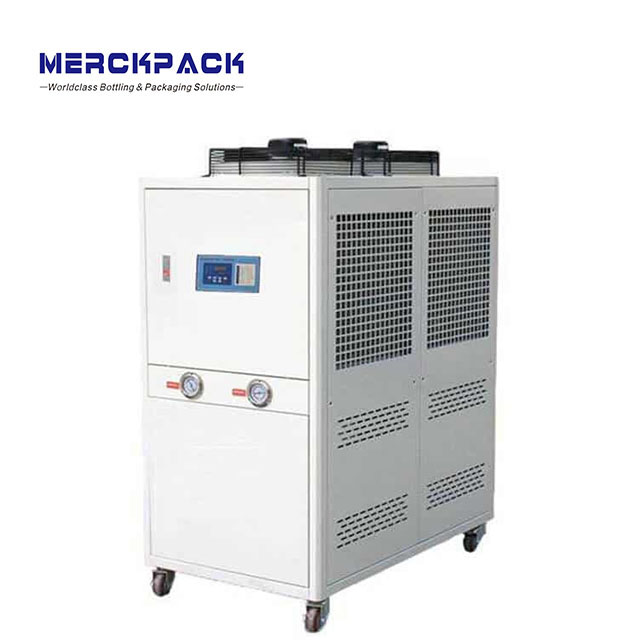

Industrial Air Cooled Chiller

Function :Air cooled chiller (7℃)

Application:  Carbonated beverage / Beer brewing system

|Technical Parameter

Name:Air cooled chiller
`Type		05ASZ	08ASZ	10ASZ	12ASZ	15ASZ	20ADZ	25ADZ	30ADZ	40AQZ	50AQZ
Nominal cooling capacity	KW	14.4	25.5	29.0	32.7	41.1	58.0	65.4	82.2	116.0	130.8
	104kcal/h	1.2	2.2	2.5	2.8	3.5	5.0	5.6	7.1	10.0	11.2
Machine power(kw)		4.7	7.3	9.7	10.9	14.5	19.0	22.1	29.6	38.2	43.8
	Machine operating current(A)	9.2	14.0	17.5	19.3	26.9	34.5	39.6	54.2	69.6	78.1
Compressor|	Quantity	1	1	1	1	1	2	2	2	4	4
	Refrigeration input power(kW)	4.0	6.1	8.1	9.1	12.4	16.2	18.2	24.7	32.4	36.4
	Rated Current(A)	7.7	11.6	14.6	16.1	22.7	29.2	32.3	45.4	58.4	64.5
Evaporator	Type	Pipe dry high efficiency heat exchanger
	Flow(L/min)	41	73	83	94	118	166	187	236	332	381
	Interface size(mm)	DN32	DN32	DN40	DN40	DN50	DN50	DN65	DN65	DN65	DN65
Condenser	Type	Efficieney copper pipe and aluminum foil wing heat exchanger
Condensation axial fan	Quantity of fans	1	2	2	2	2	6	6	6	8	8
	fans power(kw)	0.2	0.5	0.9	1.1	1.1	1.3	1.7	2.7	3.6	4.4
	Operating current(A)	0.6	1.2	1.7	1.9	2.3	2.8	3.5	5.0	6.8	7.6
Chilled water pump	Type	High efficieney,low noise centrifugal water pump
	Input power(kw)	0.55	0.75	0.75	0.75	1.10	1.50	2.20	2.20	2.2	3.00
	Head (mH2O)	22	25	22	25	23	22	22	22	22	23
Nominal tank volume(L)		80	115	130	130	210	230	250	310	330	370
Overall dimensions	Length(mm)	1050	1400	1450	1450	1570	1900	2000	2200	2900	3100
	Width(mm)	700	900	1000	1000	1000	1200	1250	1350	1500	1500
	Height(mm)	1090	1290	1410	1410	1610	1550	1550	1820	2000	2100
weight	Machine weight(kg)	180	350	450	500	700	830	1050	1250	1350	1550
	Operating weight (kg)	260	465	580	630	910	1060	1300	1560	1650	1920

Products features:

1)Scroll Hermetic compressor :International brand with freemaintenance

2)Electrical elements and refrigeration components are used from world-renowned brand

3)Industrial and durable design ,with stainless steel water tank and high-lift pumps

4)Perfect breakdown protection :high and low pressure protection ,air discharage protection ,oil level protection ,water flow protection,reverse and lack phase protection ,chilled water and anti-freezing protection ,cooling water overheat protection.
