SM-2Cavity
MERCK
| Product Description

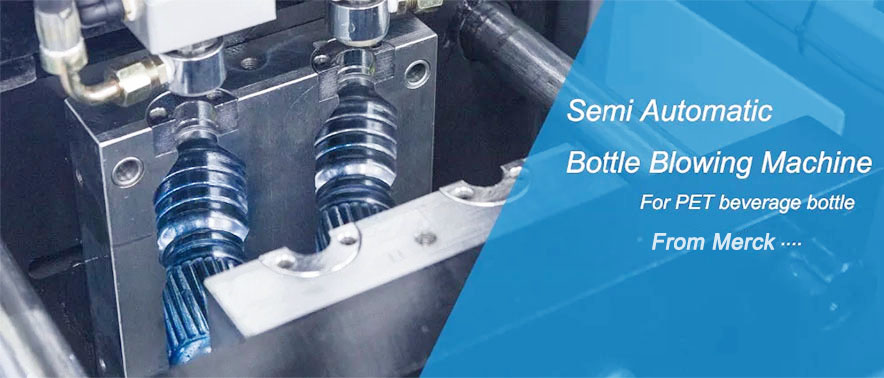

Fully Automatic Plastic PET Bottle Blowing Machine Price Made by the PET preform
Product description
1). Stable performance with advanced PLC.
2). Conveying preforms automatically with conveyor.
3). High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
4). No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6). Strong clamping force with high pressure and double crank links to lock the mold.
7). Two ways of operating: Automatic and manual.
8). Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
9). Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
10). Contamination is avoided for the bottle body.
11). Easy installation and starting

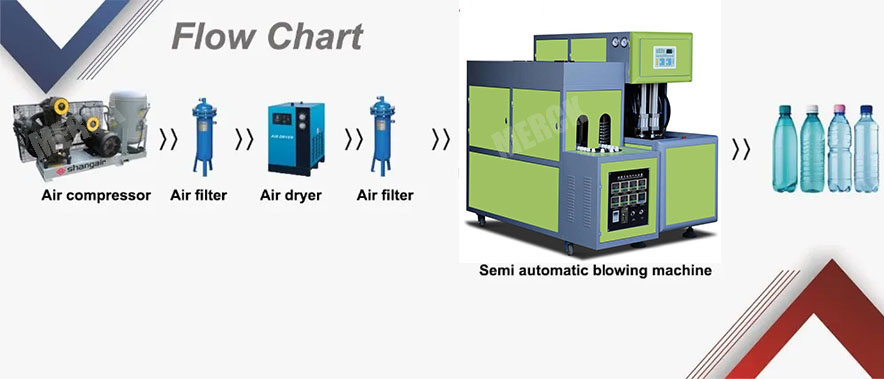

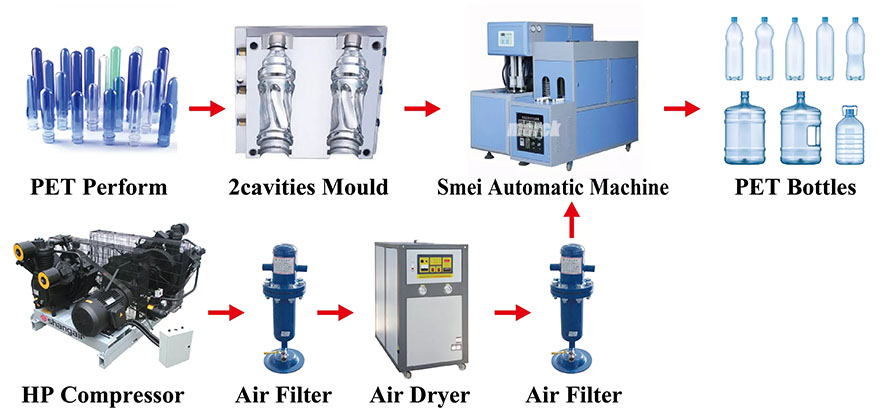

Equipment production process

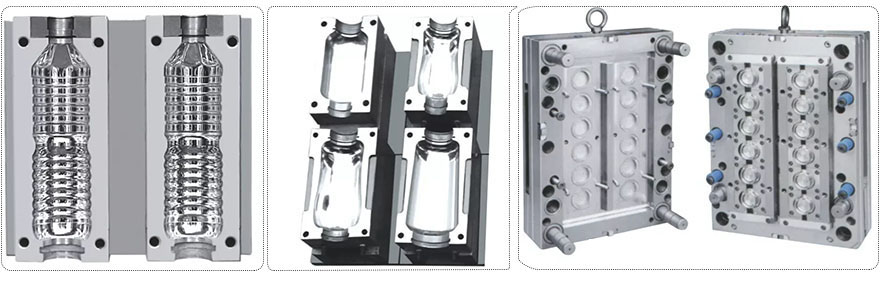

Suitable bottles
|Technical Parameter
| Model | SBM-8Y1 | SBM-8Y |
| Bottle sizes | 0.1L-2L | 0.1L-2L |
| Remarks | One blower+one oven | Two blower+one oven |
| Capacity (bottles/hour) | 800bph | 1500bph |
| Total power | 15KW | 25KW |
| Max bottle height | <350mm | <350mm |
| Max bottle diameter | <120mm | <120mm |
| High pressure air consumption | 1.0m³/min 30kg | 1.2m³/min 30kg |
| Weight | 500kg | 800kg |

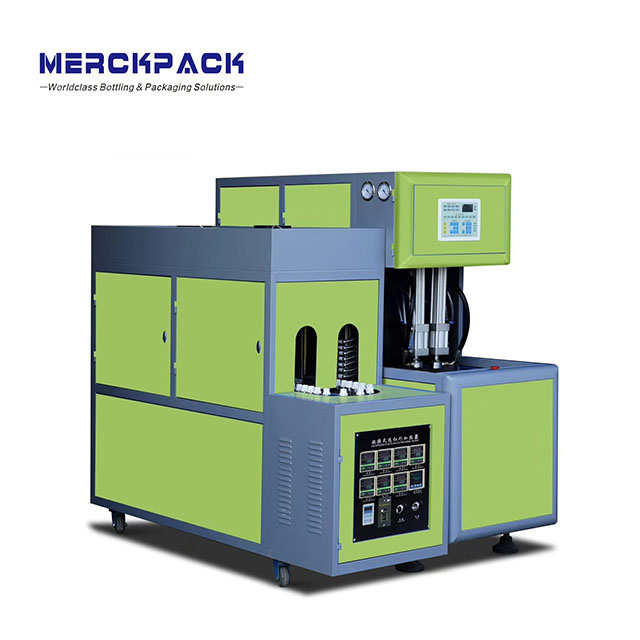

50ml-2500ml Plastic pet Beverages Drink Soda Bottle Semi-Automatic Stretch Blow Blowing Molding Moulding Machine.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our Advantages
Production Line
Like Carbonated beverage , soda water ,energy drinks ...
Capacity :1000bph~20000bph
Like Fruit juice ,NFC juice , juice with pulp ...
Capacity:500bph~30000bph
Like PET bottle beer ,Glass bottle beer ,Can beer ...
Capacity:500bph~20000bph

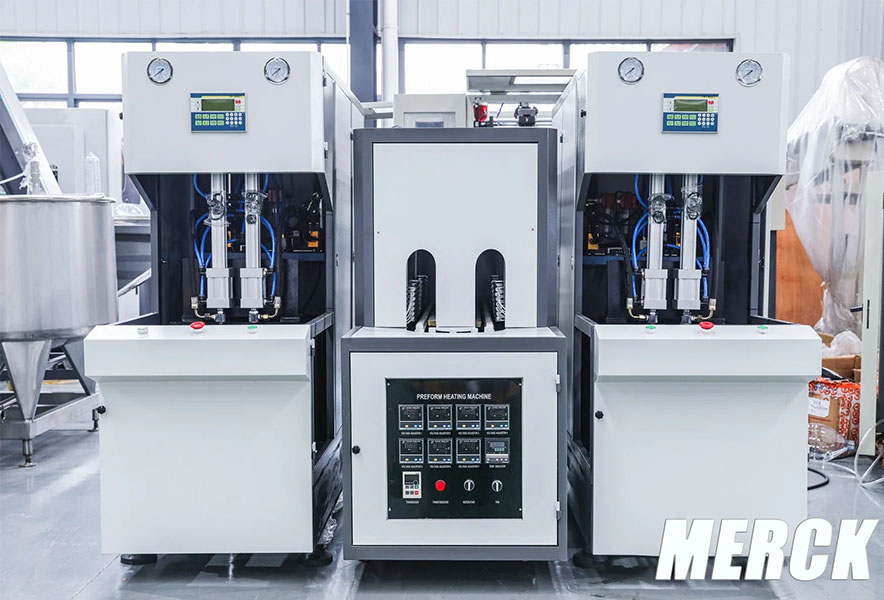

| Semi Auto Bottle Blowing Machine Packing&Shipping
| Company Profile
ZHANGJIAGANG MAERCK MACHINER CO.,LTD.
We are not only a machine manufacturer, we can also supply turnkey project according to customers’ request, including workshop design, machine layout design, water, gas, electric cable layout design, label and bottle design and so on. Our mission is to ensure customers’ plant properly working and help customers win their market.
Different capacity small bottle mineral water filling machine
| About Service
| FAQ
1.Q For a new starter, how can you help me start and run a water or beverage bottling plant?
