| Product Description

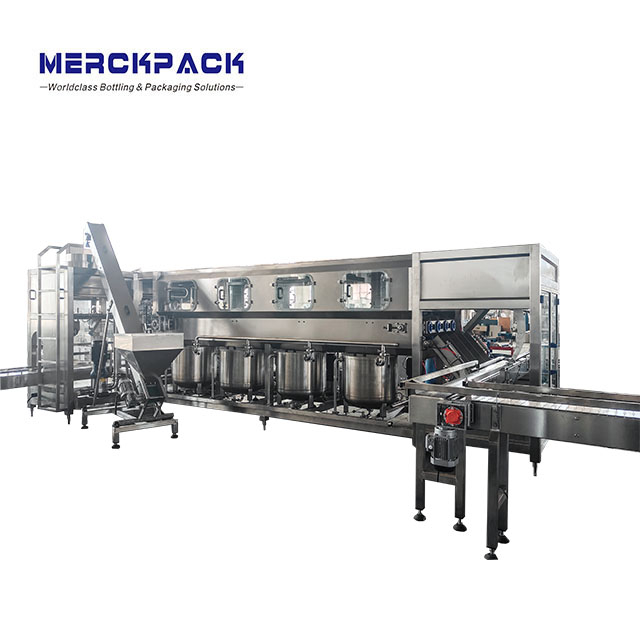

Automatic Bottled 5 Gallon Water Filling Line 5 gallon pure water bottle washing filling capping machine
This filling line specially for 3-5gallons barreled drink water,with type QGF-100, QGF-240, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200. It intergrates bottle washing, filling and capping into one unit. In order to achieve the purpose of washing and sterilizing , the washing machine use multi-washing liquid spray and-thimerosal spray. This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together.
| Product Details
|Technical Parameter
| Technical parameter :3&5 gallon water filling machine |
Model
| QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Capacity | 100BPH | 300BPH | 450BPH | 600BPH | 900BPH | 1200BPH |
| Suitable bottle shapes | PET circular or square |
| Bottle volume | 3 & 5 Gallon |
| Compressor air | 0.3-0.7Mpa |
| Air consumption | 0.37 m3/min |
| Rinsing pressure | >0.06Mpa <0.2Mpa |
| Application | 3&5 gallon water bottle filling
|
| Total power (kW) | 1.5kw | 3.8kw | 4.5kw | 5.2kw | 6.2kw | 7.8kw |
| Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
| Height | 1.8m | 2m | 2.2m | 2.3m | 2.5m | 2.6m |
| Weight | 800kg | 1500kg | 2000kg | 2500kg | 2800kg | 3500kg |
5 Gallon Water Bottle Filling Machine Automatic
Bottle Material: PET Bottle
Cap: Plastic
Bottle Volume: 3L-20L
Production Speed: 100-1200bph
Suitable Bottle:
3 to 5 gallon bottles
Description:
The filling line specially for 3-5 gallons barreled drinking water ,with type QGF-100,QGF-240,QGF-300,QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.It integrateds bottle washing,filling and capping into one unit ,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together

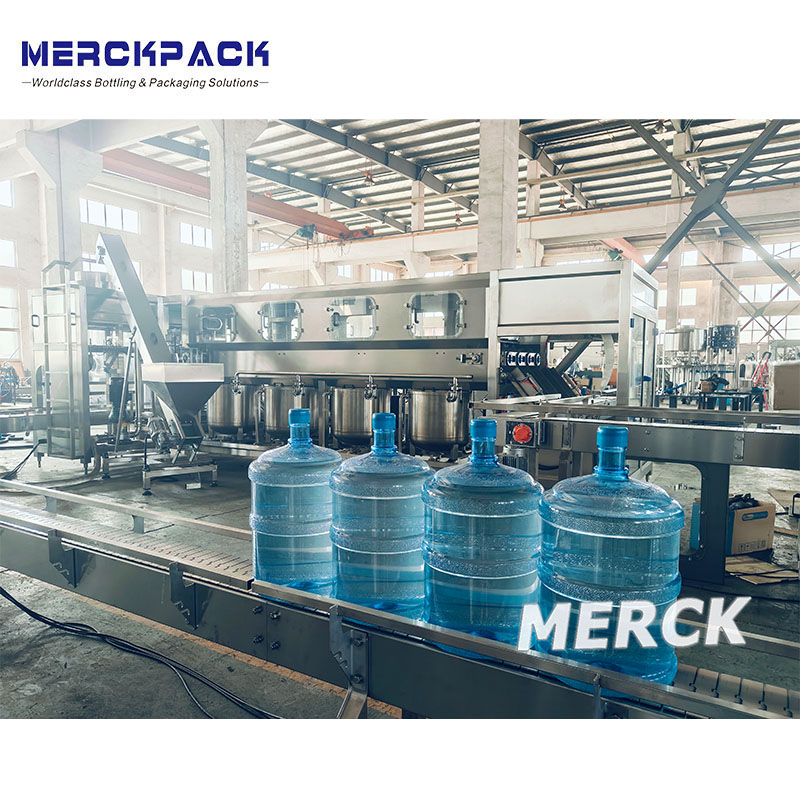

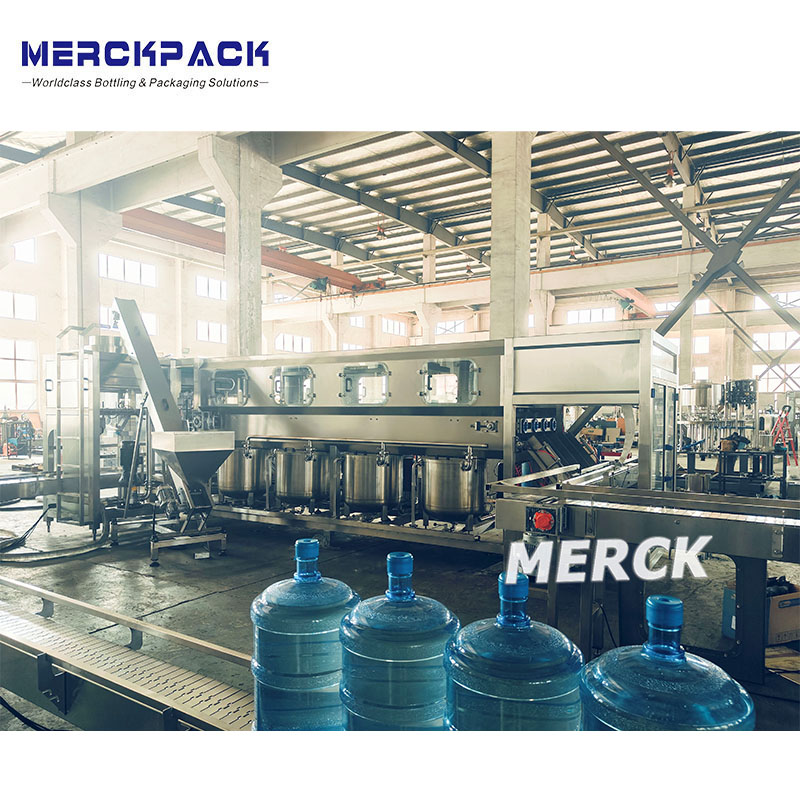

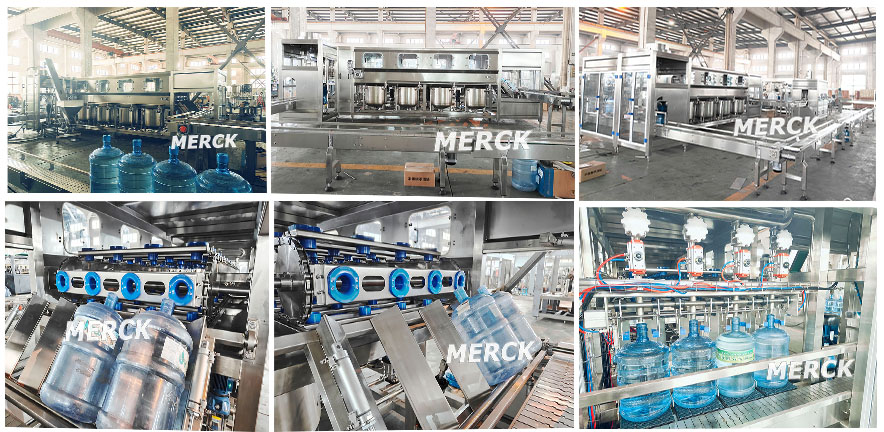

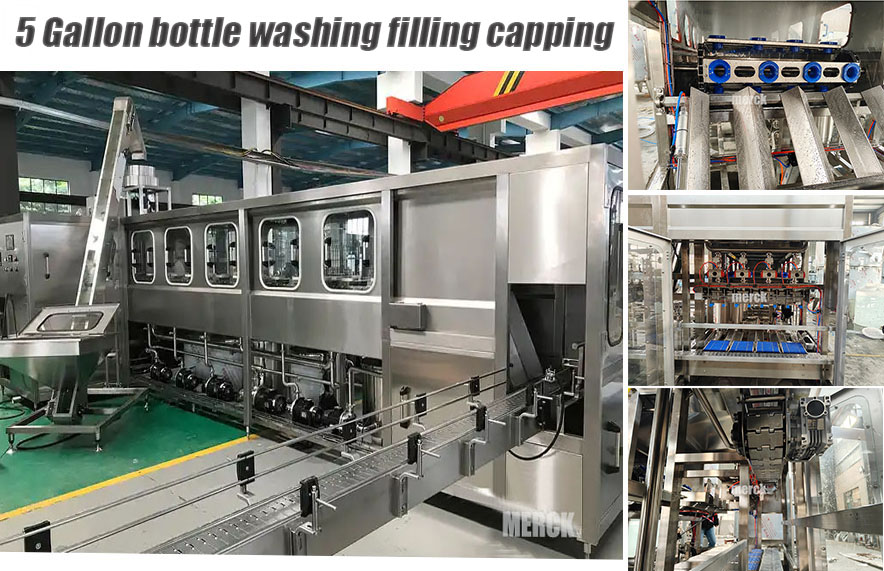

1.Automatic linear type 5 gallon water rinsing filling and capping machine

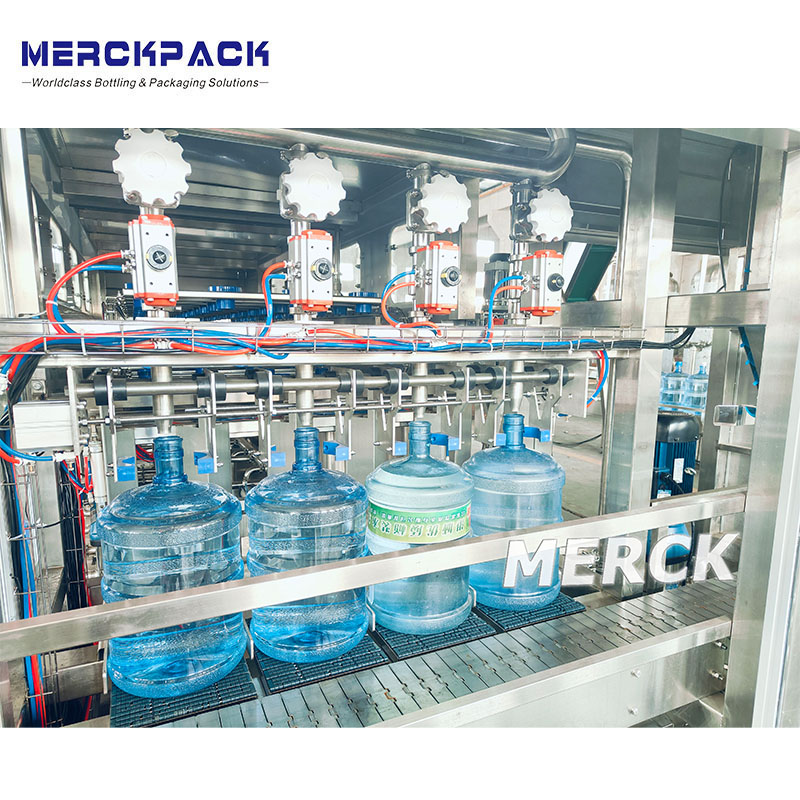

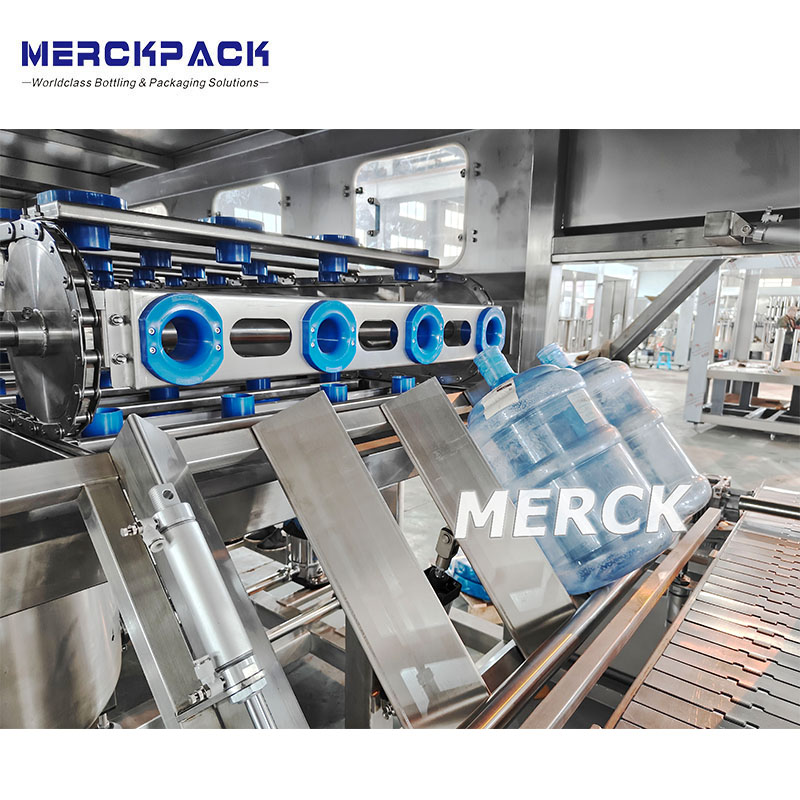

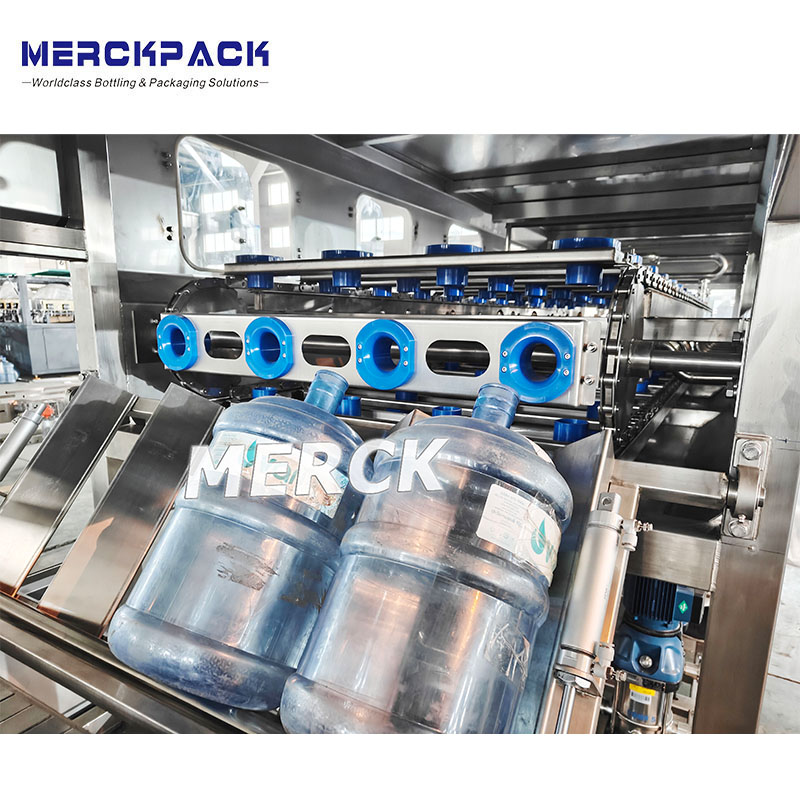

QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water.This machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.QGF barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.
Automatic Big Barrel 10L 19L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
*We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine / Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system
|Complete Line Solution

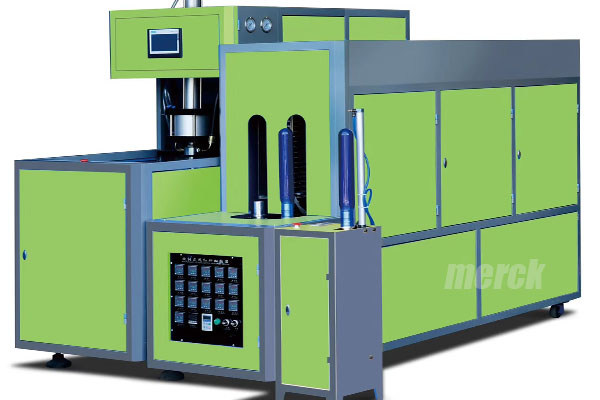

Bottle blowing machine

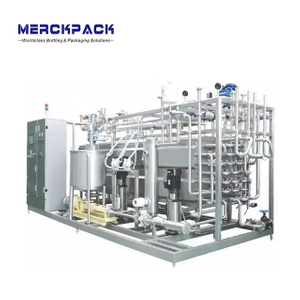

water treatment system
Automatic decapping machine

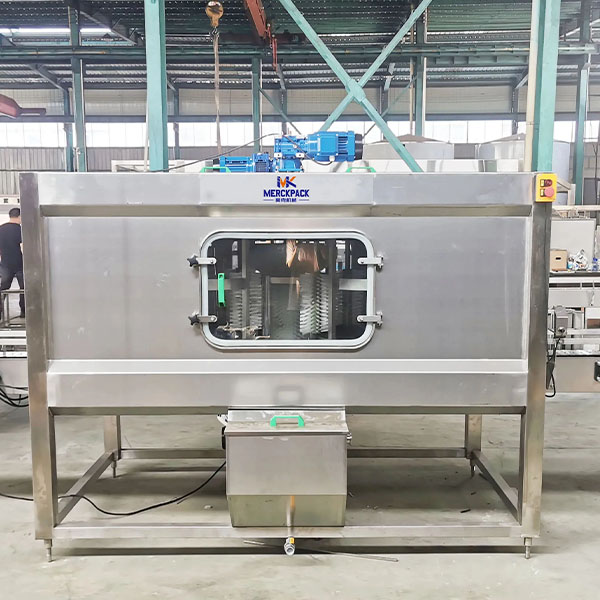

Automatic brushing machine
Automatic date printer

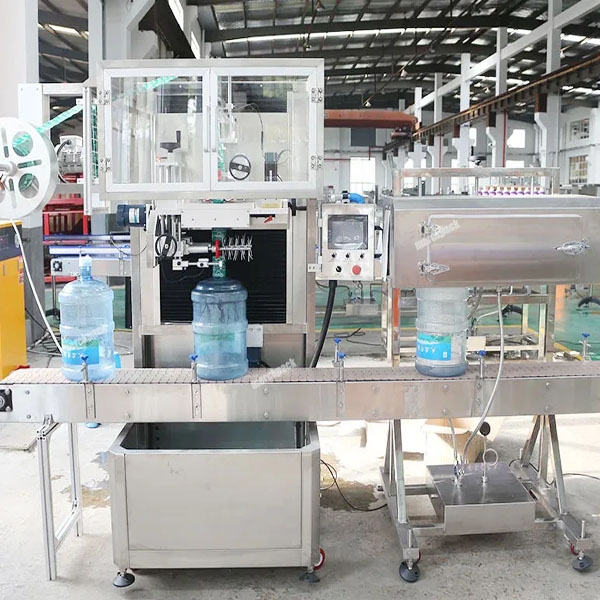

Sleeve shrinking machine
Bag Packing Machine
Automatic palletizer

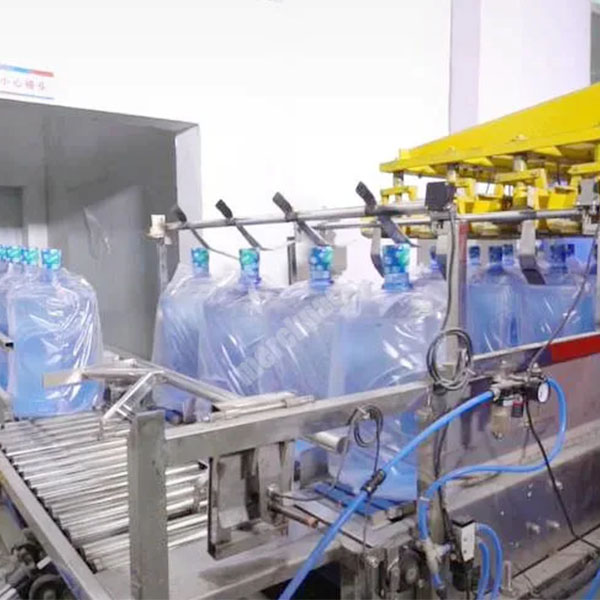

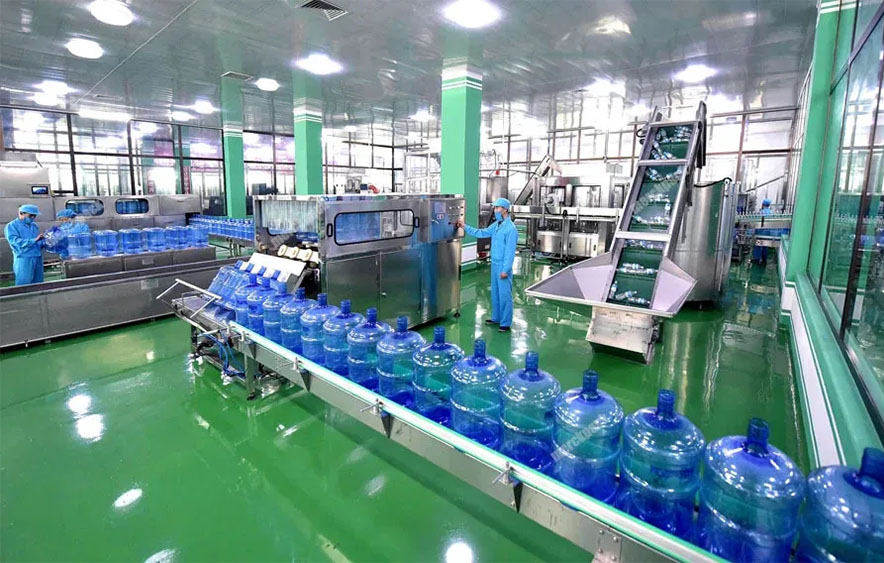

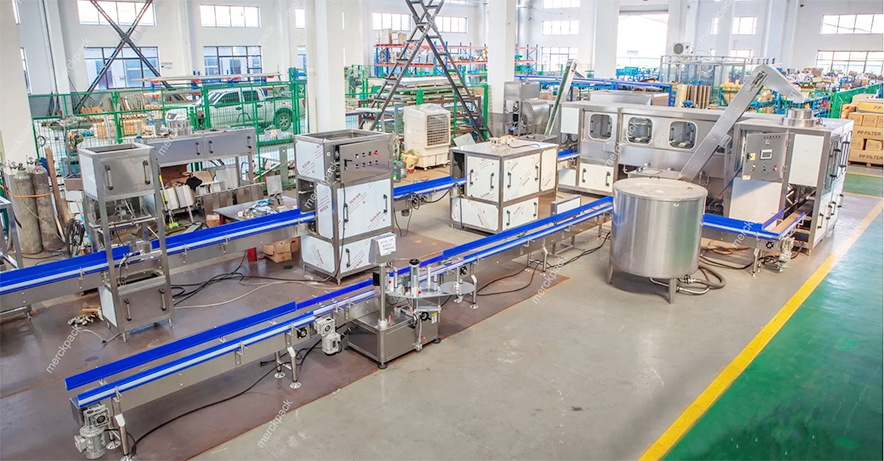

|Customer Production Site
More Products
Like Carbonated beverage , soda water ,energy drinks ...
Capacity :1000bph~20000bph
Like Fruit juice ,NFC juice , juice with pulp ...
Capacity:500bph~30000bph
Glass Bottle Beer filling machine
Like PET bottle beer ,Glass bottle beer ,Can beer ...
Capacity:500bph~20000bph
|Turnkey Solutions

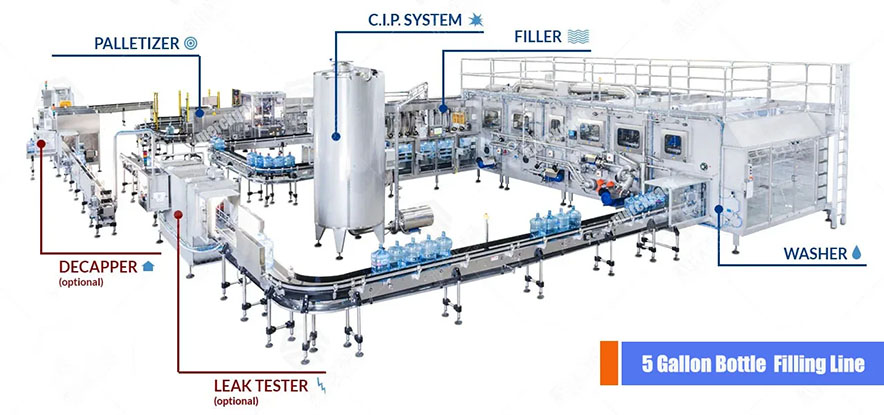

Complete 5 gallon water filling machine production line includes :
1. Bottle blowing system to make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Auto Bottle Uploader
4. Decapping Machine
5. Outside Brusher
6. Inside Brusher
7. Rinsing Filling Capping Machine

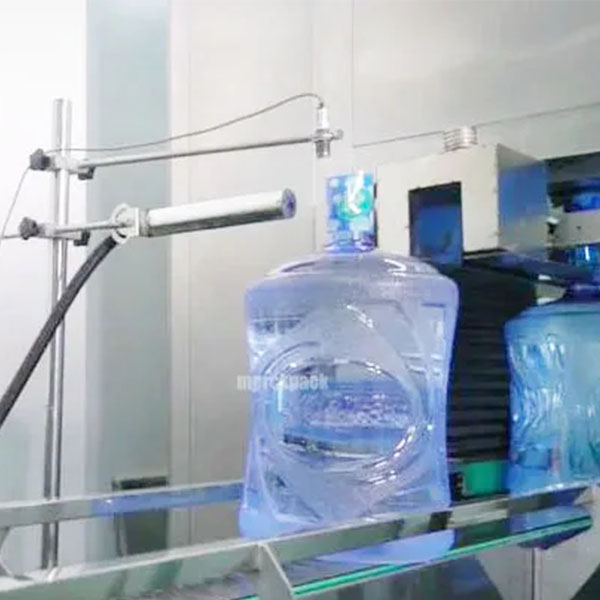

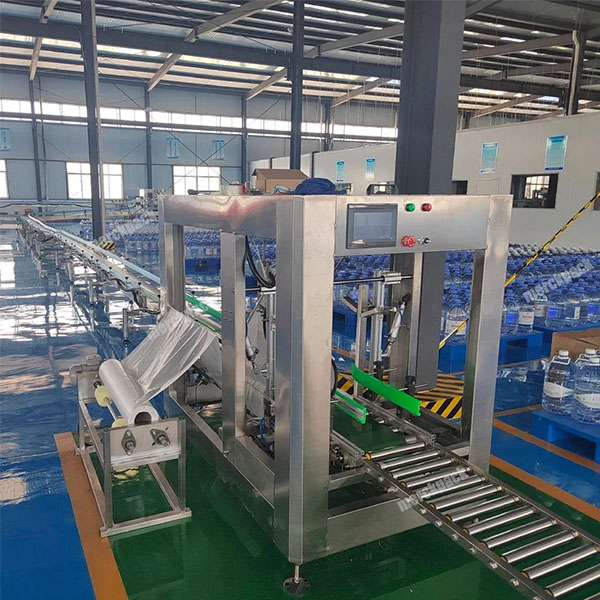

8. Light Inspector+Cap Seal Shrink Machine
| 3&5 Gallon Bottled Water Filling machine Packing&Shipping
| Company Profile
ZHANGJIAGANG MAERCK MACHINER CO.,LTD.
Zhangjiagang Merckpack Machiney Co., Ltd. was founded in 2004, our company covers an area of 15000m2. We are a leading enterprise in research and production of liquid and beverage packing machines. Our main products includes: water treatment plant, beverage and daily chemical filling machine, bottle labeling machine, film shrink wrapping and carton packing machine, beverage processing and production lines.
We are not only a machine manufacturer, we can also supply turnkey project according to customers’ request, including workshop design, machine layout design, water, gas, electric cable layout design, label and bottle design and so on. Our mission is to ensure customers’ plant properly working and help customers win their market.
Different capacity small bottle mineral water filling machine
8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hour
| About Service
| FAQ
1.Q For a new starter, how can you help me start and run a water or beverage bottling plant?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
2.Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
3.Q How can we check our machines if we order the machines from you?
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
4.Q How can I know the quality of your machines before I order?
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running.You are also very welcome to visit our company in China to see the machine running in our factory.
5.Q Can your company provide turnkey project from A to Z?
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
